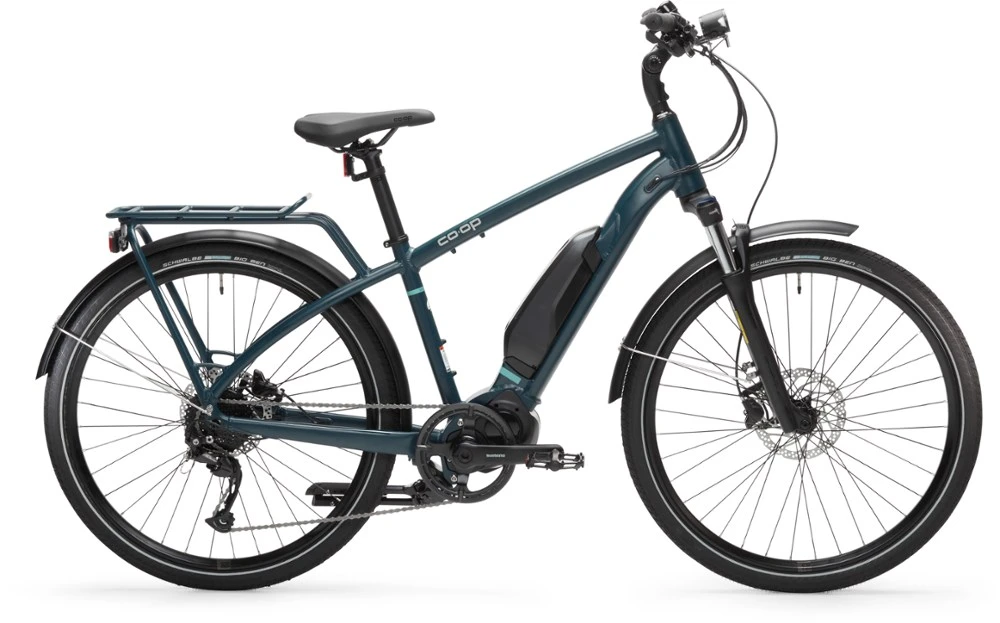

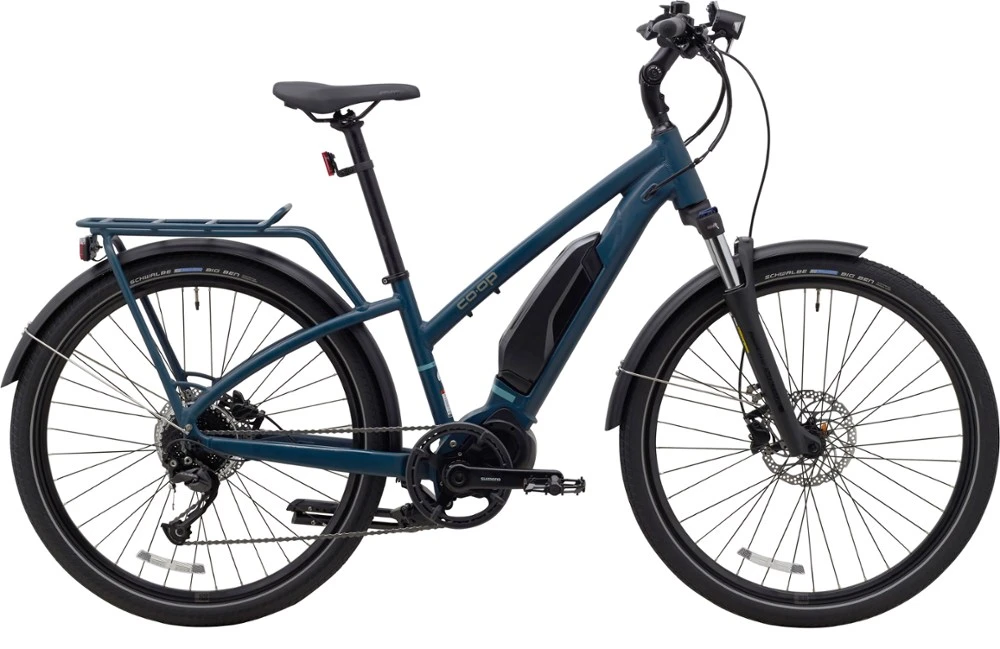

You’ll feel like you have quads of steel as you flatten hills, get a rush from rush hour and even roll down dirt roads to camp if you like, on the fast, nimble Co-op Cycles CTY e2.2 electric bike.
Features
- An upgrade from the CTY e2.1 with a more powerful motor for improved acceleration and hill climbing, better battery to support the motor and increase range and fenders
- Low stand-over height design makes the bike easy to get on and off and easy to stabilize while standing at a stop

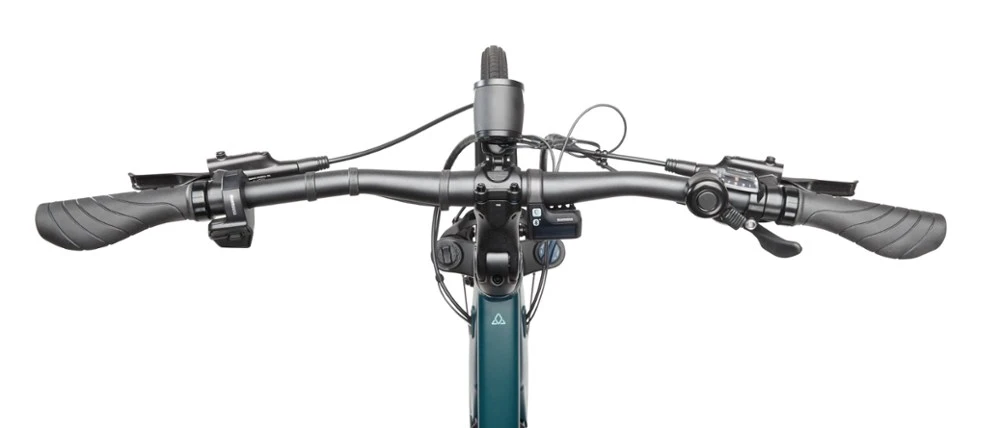

- Upright riding position gives you great visibility; adjustable stem lets you fine-tune the cockpit to fit you

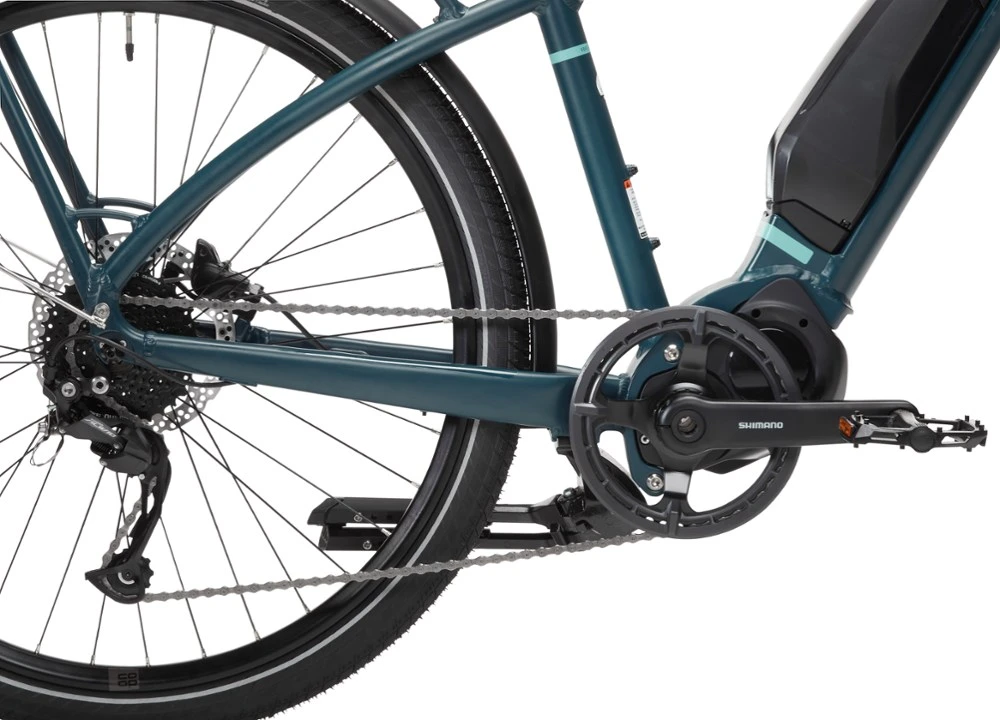

- Shimano e6100 motor is the strong, silent type, with more torque than that of the CTY e2.1, offering 3 pedal-assist modes plus a walk mode

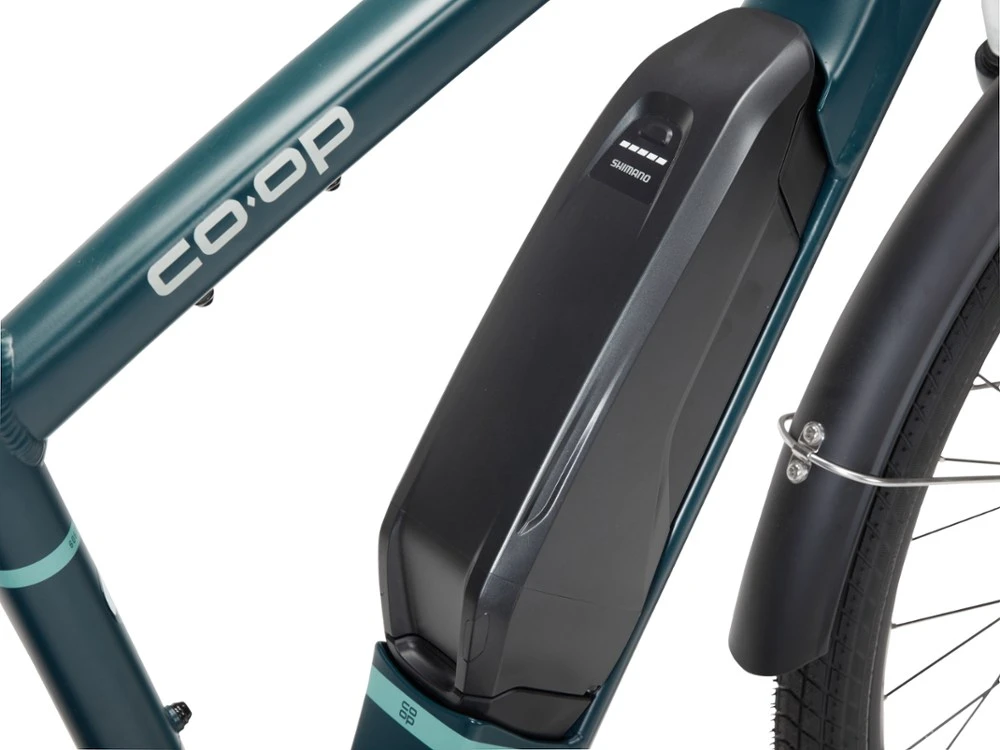

- Shimano E8010 504Wh battery extends your range and is equipped with an ABUS lock so you can feel confident parking it around town

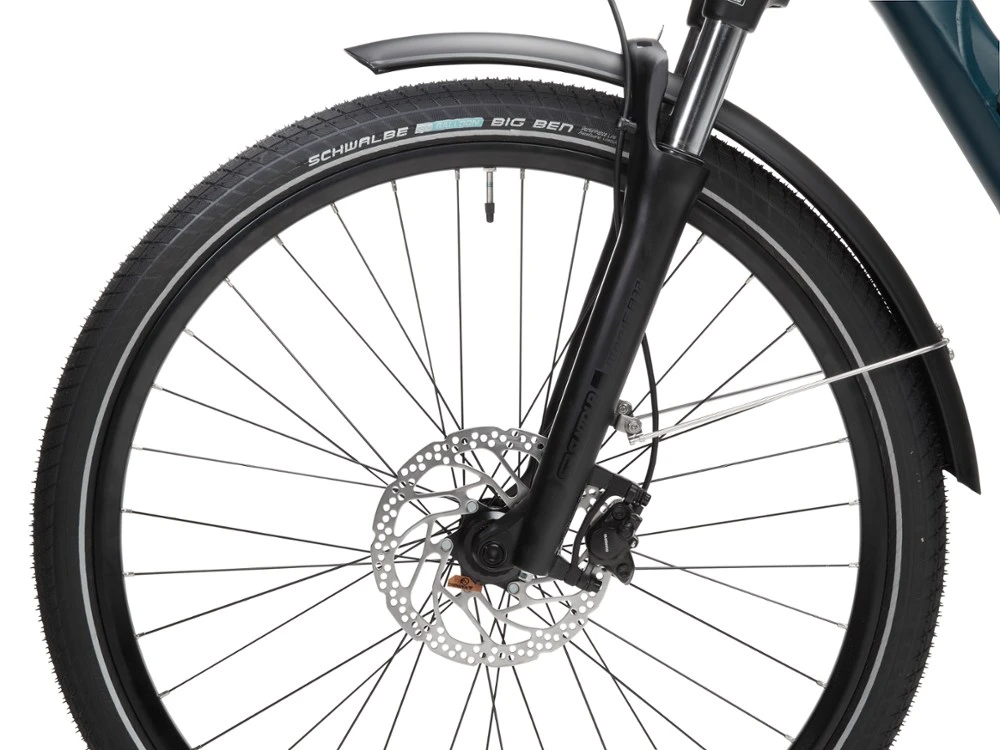

- Suntour front suspension fork smooths out the ride with 75mm of travel
- 27.5 in. wheels with multisurface tread profile let you roll fast on hard pack, grip on gravel or dirt roads
- Shimano hydraulic disc brakes deliver reliable, nuanced stopping power

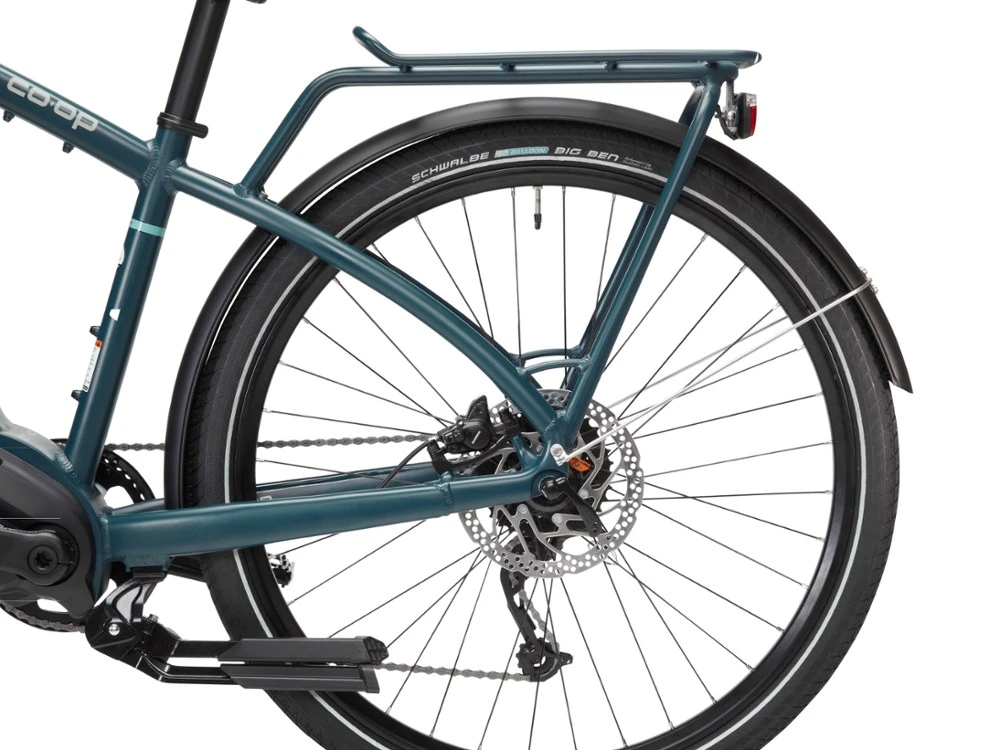

- Integrated rear rack facilitates grocery runs, commuting or adding a kid carrier; pannier compatible with a weight limit of 59 lbs

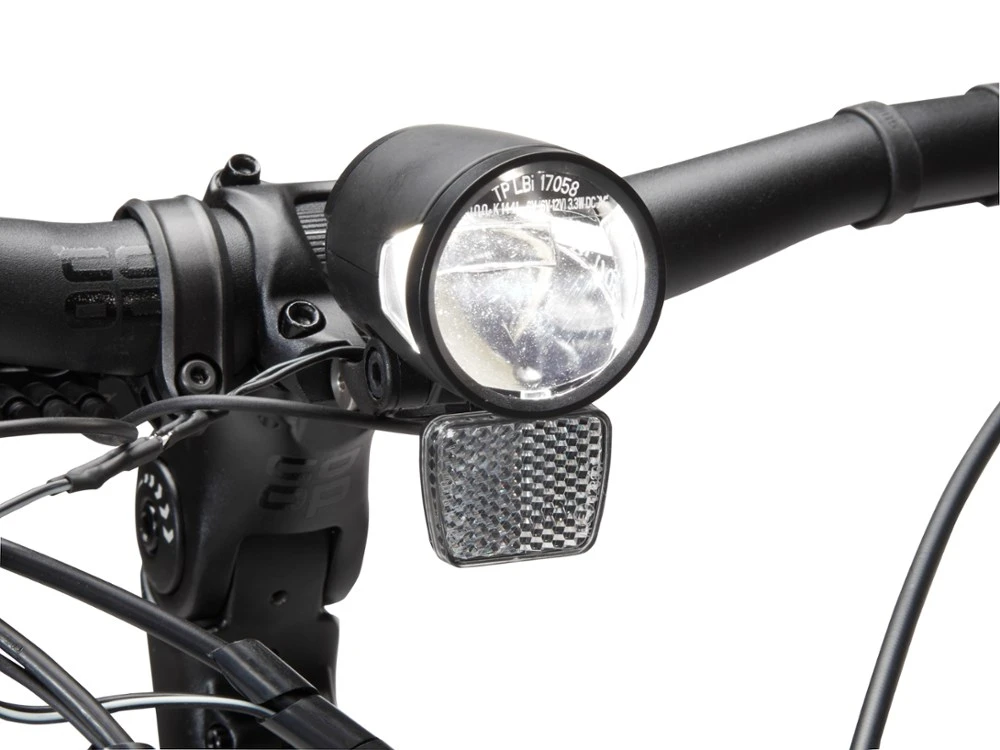

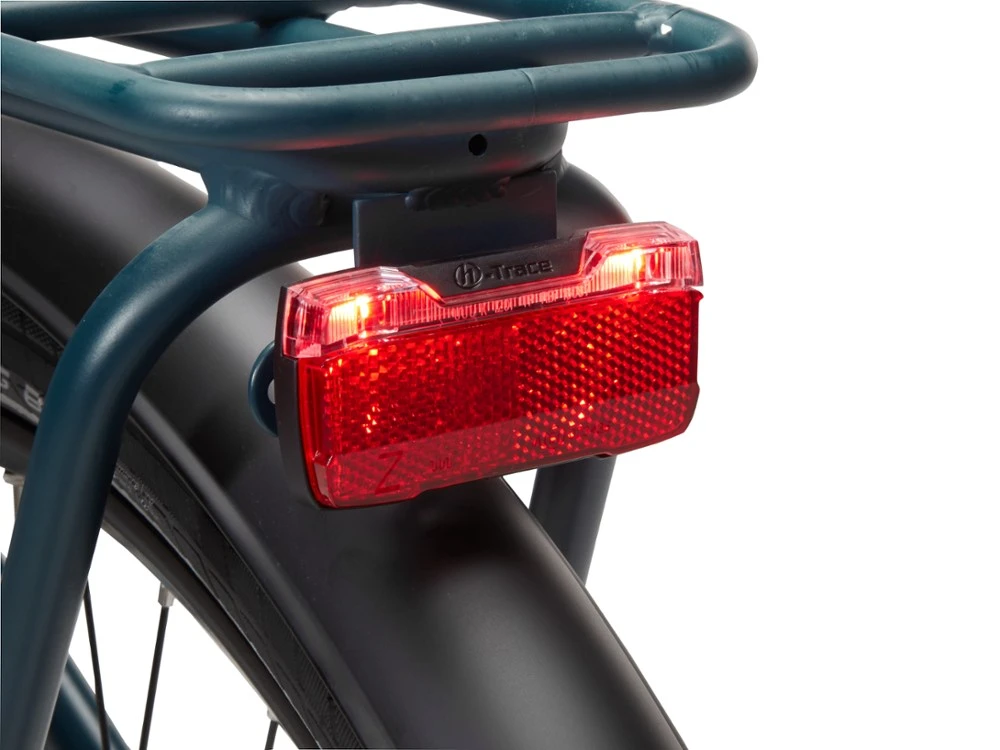

- Included front and rear lights run on the battery so you don’t need to think about keeping them charged
- Included front and rear fenders for riding in less-than-ideal weather

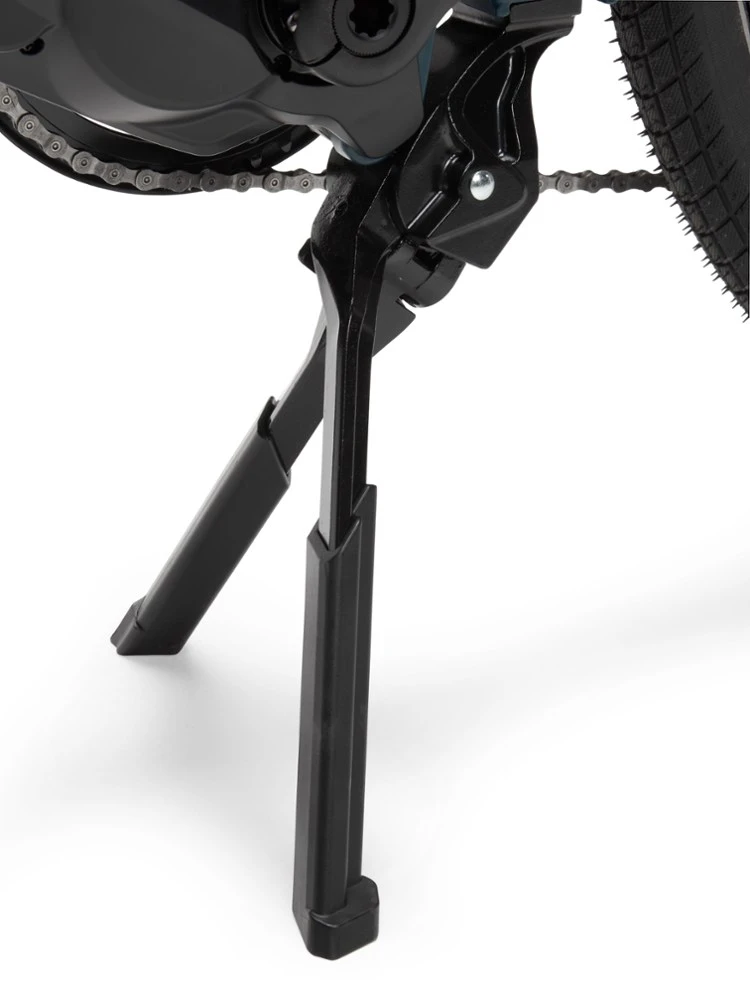

- Center kickstand is easy to use and super stable

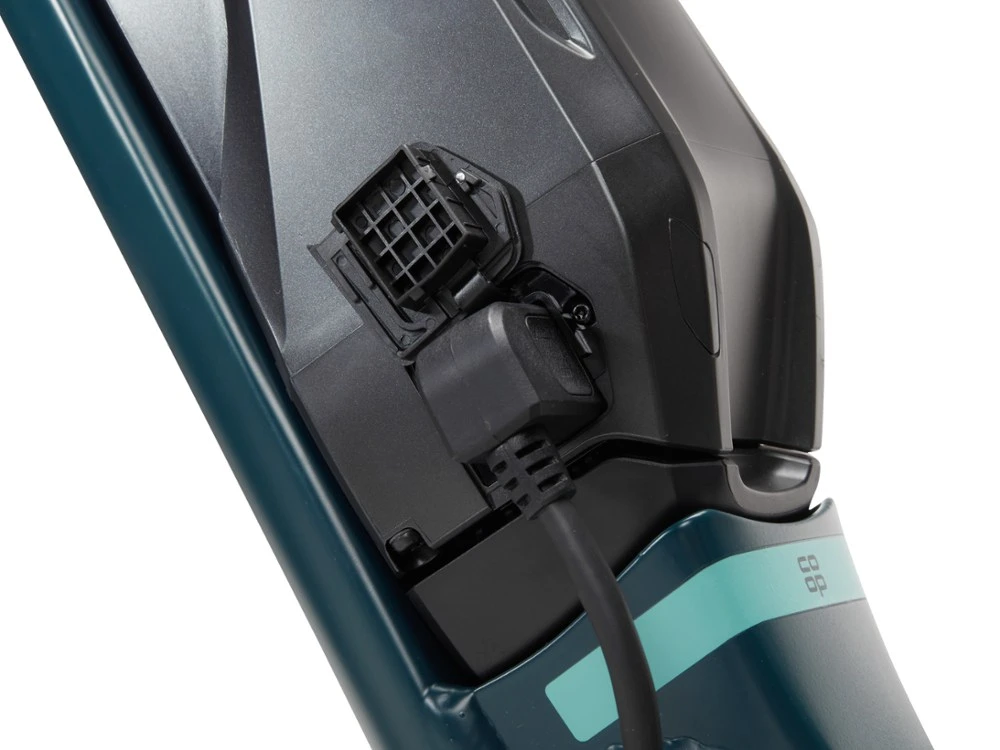

- Battery charger included
- Bicycle weight limit is 300 lbs. total, including rider + all gear carried on the bike and on the rider’s body
- Specs and images are subject to change
Imported.
Technical Specs
| Best Use |
Urban Cycling |
|---|---|
| E-Bike Classification |
Class 1: pedal assist up to 20 mph |
| Motor |
Shimano E6100 250W with Shimano E8010 36V/504Wh battery (max torque output 60Nm) |
| Motor Type |
Mid-Drive |
| Motor Torque (Nm) |
60 Newton meters |
| Battery Type |
Lithium Ion |
| Battery Capacity (Wh) |
504 watt hours |
| Battery Removable |
Yes |
| Charge Time (hrs) |
4 hours |
| Pedal Assist Range |
50 miles |
| Frame |
6061 Aluminum |
| Bike Suspension |
Front Suspension |
| Fork |
Suntour MOBIE-A32 |
| Fork Travel |
75 millimeters |
| Crankset |
Shimano FC-E6100 |
| Bottom Bracket |
Shimano FSA |
| Shifters |
Shimano Acera, Rapidfire plus, 9-speed |
| Rear Derailleur |
Shimano Alivio RD-M3100, 9-speed |
| Rear Cogs |
Shimano HG200; 11-34, 9-speed |
| Number of Gears |
9 gear(s) |
| Brake Type |
Hydraulic Disc Brake |
| Brakes |
Shimano Altus |
| Brake Levers |
Shimano |
| Rims |
Co-op Cycles double-wall, 36h |
| Front Hub |
Shimano Alivio |
| Rear Hub |
Shimano Alivio |
| Wheel Size |
27.5 inches |
| Tires |
Schwalbe Big Ben 27.5 x 1.95 in. |
| Tire Width |
1.95 inches |
| Handlebar Shape |
Riser Bar |
| Handlebar |
Co-op Cycles 6061 aluminum |
| Stem |
Promax HQ adjustable |
| Seat Post |
Co-op aluminum |
| Saddle |

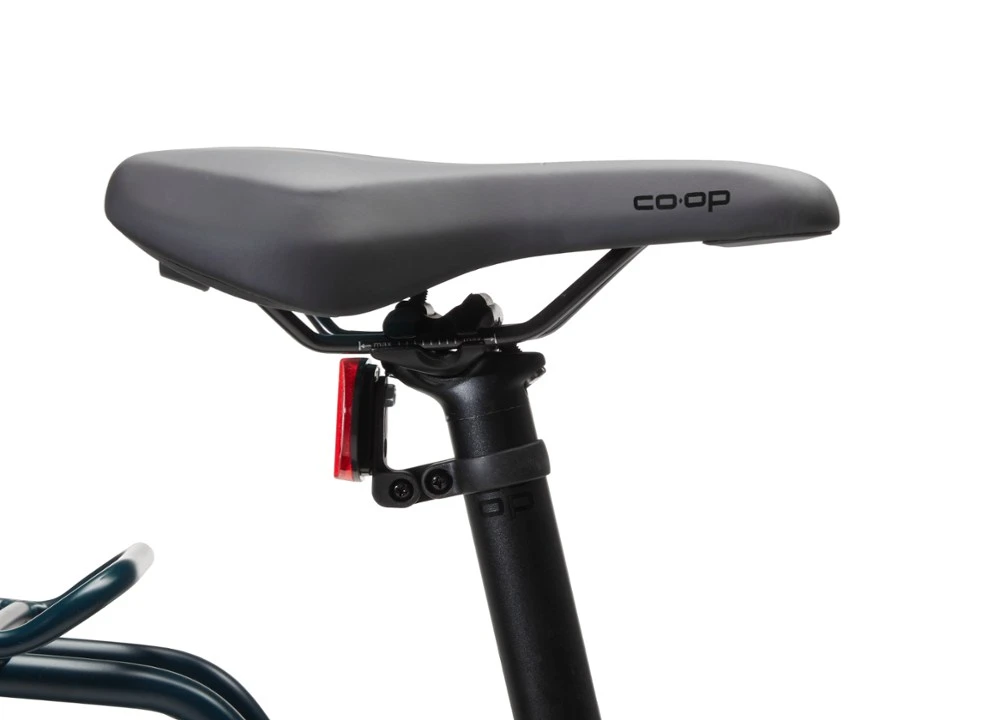

Co-op Comfort Plus with memory foam |
| Pedals |
FPD alloy |
| Chain |
Shimano for e-bike |
| Weight |
51.9 pounds |
| Bike Weight |
Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender |
Unisex |

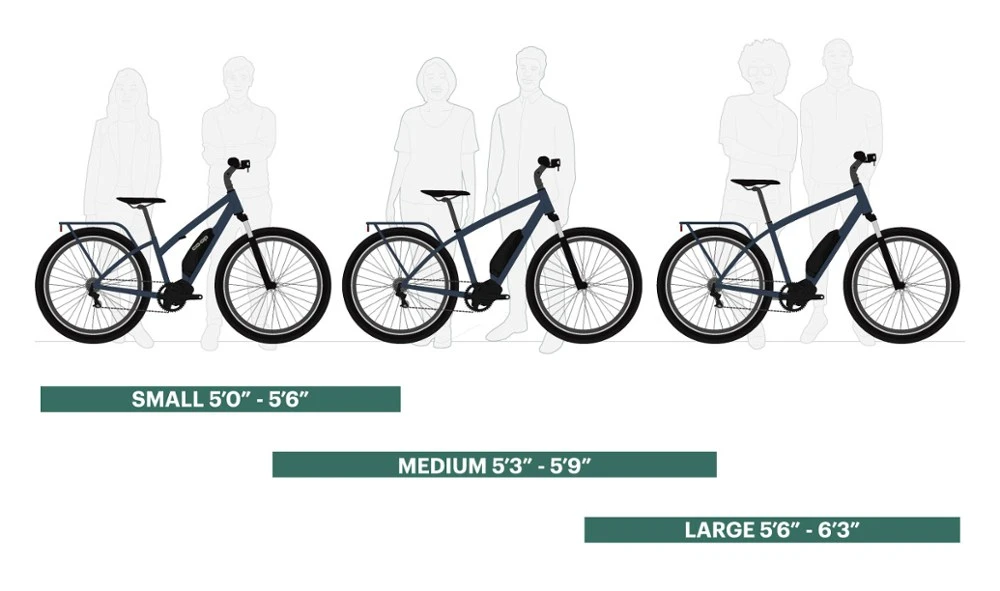

Size Chart
| S | M | L | |
|---|---|---|---|
| Height Range | 5’0″-5’6″ | 5’3″-5’9″ | 5’6″-6’3″ |
| Reach | 370 | 380 | 390 |
| Stack | 612 | 621 | 649 |
| Effective Top Tube | 558 | 577 | 602 |
| Seat Tube Center-Top | 375 | 425 | 475 |
| Standover Height | 676 | 755 | 790 |
| Head Tube Length | 135 | 145 | 175 |
| Head Tube Angle (degrees) | 70 | 70 | 70 |
| Seat Tube Angle (degrees) | 73 | 72.5 | 72 |
| Fork Offset | 44 | 44 | 44 |
Sizing Notes
Measurements are stated in millimeters unless otherwise indicated.
