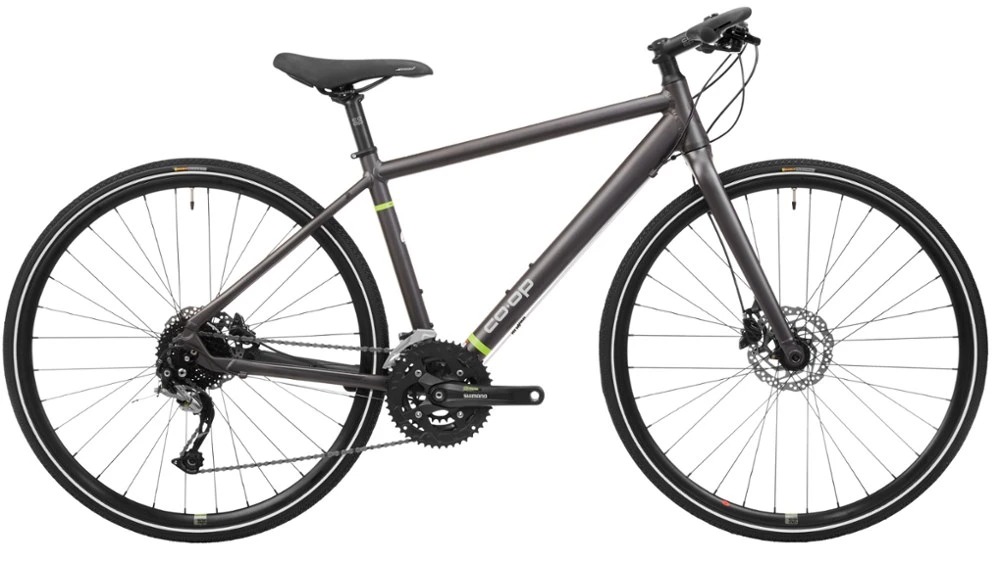

Head off to work or the store on the Co-op Cycles CTY 1.2 hybrid bike. A versatile 3×9 drivetrain, flat handlebar for comfortable upright riding, and room to add rack/fenders make it a sweet ride.
Features

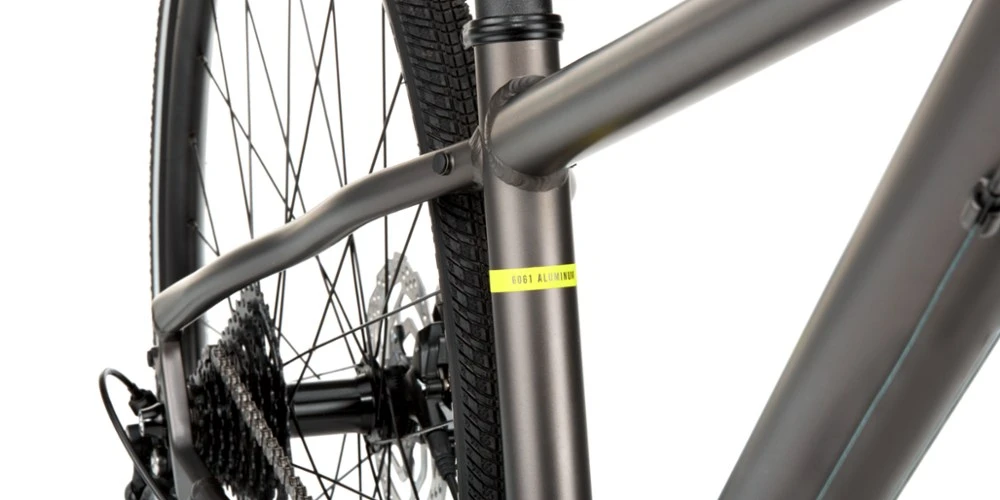

- Aluminum frame and fork deliver a smooth ride for commuting, errands and longer jaunts on the weekend
- Flat handlebar provides an upright riding position for improved comfort and visibility

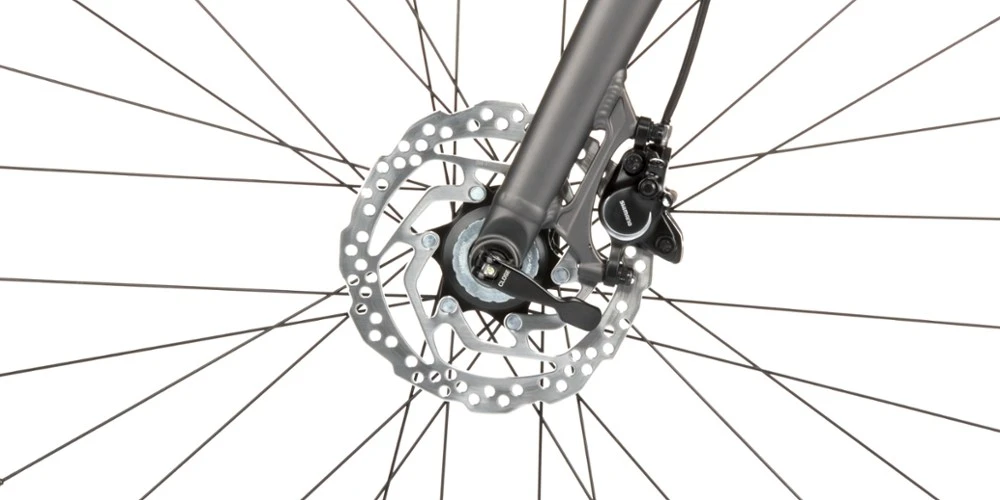

- Hydraulic disc brakes offer consistent performance in all conditions

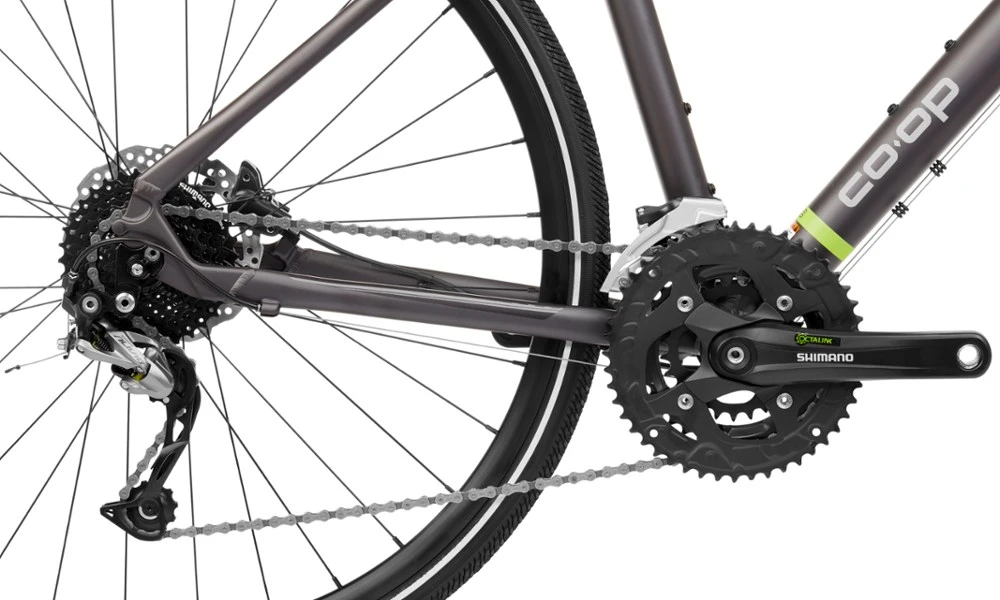

- 3×9 drivetrain offers wide-ranging gearing to make riding up hills easy
- Reflective decals and tire sidewalls increase visibility in dim light
- Fender and rack mounts (fenders and racks sold separately)
- Internal rear brake cable routing keeps the look clean
- Platform pedals means you can wear your street shoes
- Bicycle weight limit is 300 lbs. total, including rider + all gear carried on the bike and on the rider’s body
- Specs and images are subject to change
Imported.
Technical Specs
| Best Use |
Urban Cycling |
|---|---|
| Frame |
6061 aluminum |
| Step-Through |
No |
| Bike Suspension |
No Suspension |
| Fork |
Aluminum with 15mm thru-axle |
| Crankset |
Shimano FCT4010 48/36/26 |
| Bottom Bracket |
Shimano Octalink |
| Shifters |
Shimano Altus |
| Front Derailleur |
Shimano Acero |
| Rear Derailleur |
Shimano Alivio Shadow |
| Rear Cogs |
Shimano Alivio, 11-34, 9-speed |
| Number of Gears |
27 gear(s) |
| Brake Type |
Hydraulic Disc Brake |
| Brakes |
Shimano M315 hydraulic disc |
| Brake Levers |
Shimano |
| Rims |
Weinmann |
| Front Hub |
Joytech, 32h |
| Rear Hub |
Joytech, 32h |
| Wheel Size |
700c |
| Tires |
Kenda Kwick Trax, 700 x 35mm |
| Tire Width |
35 millimeters |
| Handlebar Shape |
Flat Bar |
| Handlebar |
Co-op Cycles aluminum |
| Stem |
Co-op Cycles aluminum |
| Seat Post |
Co-op Cycles aluminum |
| Saddle |
Selle Royal Shadow + with gel |
| Pedals |
Wellgo alloy platform |
| Headset |
FPD cartridge |
| Chain |
Shimano HG53 |
| Weight |
26.8 pounds |
| Bike Weight |
Bike weight is based on median size, as sold, or the average of two median sizes. |
| Gender |
Unisex |
Size Chart
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Height Range | 5’0″-5’3″ | 5’3″-5’6″ | 5’6″-5’9″ | 5’9″-6’0″ | 6’0″-6’3″ |
| Reach | 389.3 | 406.6 | 416.6 | 424.3 | 441.5 |
| Stack | 525.4 | 534.8 | 550.9 | 574.5 | 600.2 |
| Effective Top Tube | 540.0 | 560.0 | 585.0 | 600.0 | 625.0 |
| Seat Tube Center-Top | 360.0 | 400.0 | 450.0 | 500.0 | 550.0 |
| Standover Height | 686.7 | 716.0 | 749.2 | 778.9 | 823.9 |
| Head Tube Angle (degrees) | 70.5 | 70.5 | 71.0 | 71.0 | 71.0 |
| Seat Tube Angle (degrees) | 74.0 | 74.0 | 73.0 | 73.0 | 73.0 |
| Wheelbase | 1044.6 | 1065.3 | 1076.0 | 1091.9 | 1112.6 |
| Chainstay | 445.0 | 445.0 | 445.0 | 445.0 | 445.0 |
| Fork Offset | 50 | 50 | 50 | 50 | 50 |
Sizing Notes
All measurements are stated in millimeters or degrees unless otherwise indicated.
